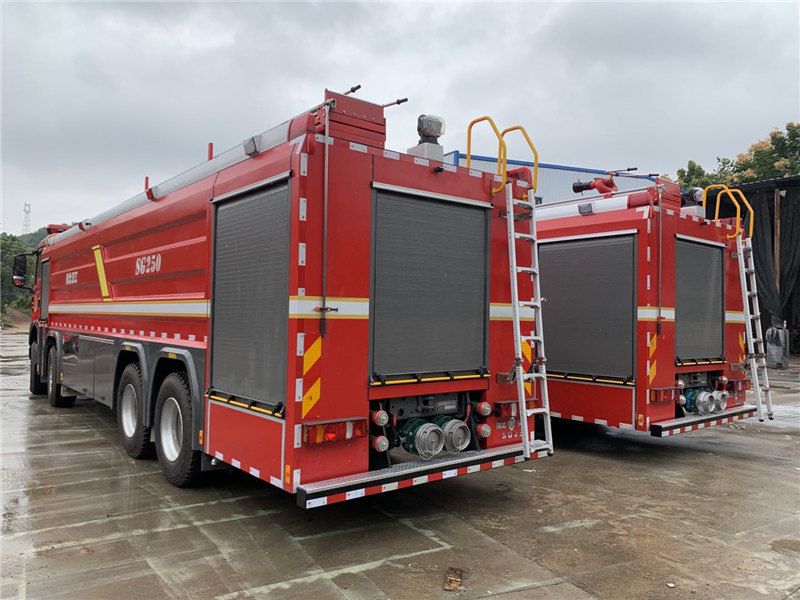

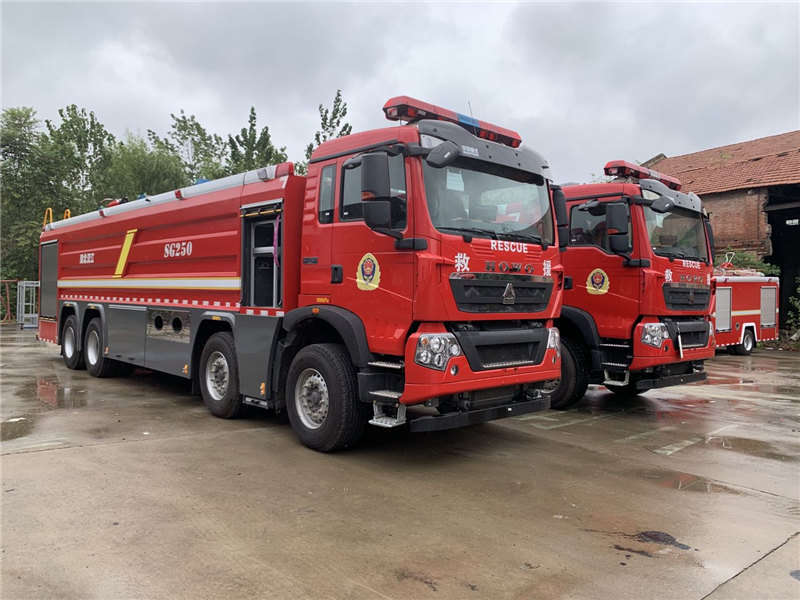

Foam fire truck is a main fire fighting vehicle with large loading capacity and the functions of water supply and fire extinguishing. It can be used for fire fighting in warehousing and other occasions, and can be used in conjunction with a complete set of lifting fire trucks to meet the fire fighting of high-rise buildings or supply water to high-rise buildings.
- Intelligent and advanced in-vehicle system: equipped with a new CAN bus control system, the LCD screen can display the working status and parameters of the vehicle in real time, and can participate in the installation of new Internet of Things and control interfaces to realize remote transmission of vehicle information and remote fault diagnosis.
- Efficient anti-corrosion: The pump room and equipment box of the whole vehicle adopts all-aluminum alloy structure and special anti-corrosion technology, and the stainless steel tank adopts various anti-corrosion and anti-rust technologies, which are reliable and durable.
- Environmental adaptability: The function of heat preservation and heating can be installed in cold areas, and the pump chamber heater can be configured to meet the requirements of low temperature and harsh environments.
- Real-time automatic microcomputer to accurately grasp dry foam and wet foam
- Efficiently extinguish and control Class A and B fires, with environmental protection performance
- Nice shape, rational structure.
- High quality fire pump
Model | HOWO-25Ton(foam tank) |
Chassis Power(KW) | 327 |
Emission Standard | Euro3 |
Wheelbase(mm) | 1950+4600+1400 |
Passengers | 2 |
Water tank capacity(kg) | 20000 |
Foam tank capacity(kg) | 5000 |
Fire pump | 100L/S@1.0 Mpa/50L/S@2.0Mpa |
Fire monitor | 80L/S |
Water range(m) | ≥80 |
Foam range(m) | ≥75 |
