-The sub-frame and main frame of the vehicle are made of special steel, and the body frame is built with high-strength aluminum alloy profiles built-in lap joint technology.
-The body cover is bonded with high-strength glue.

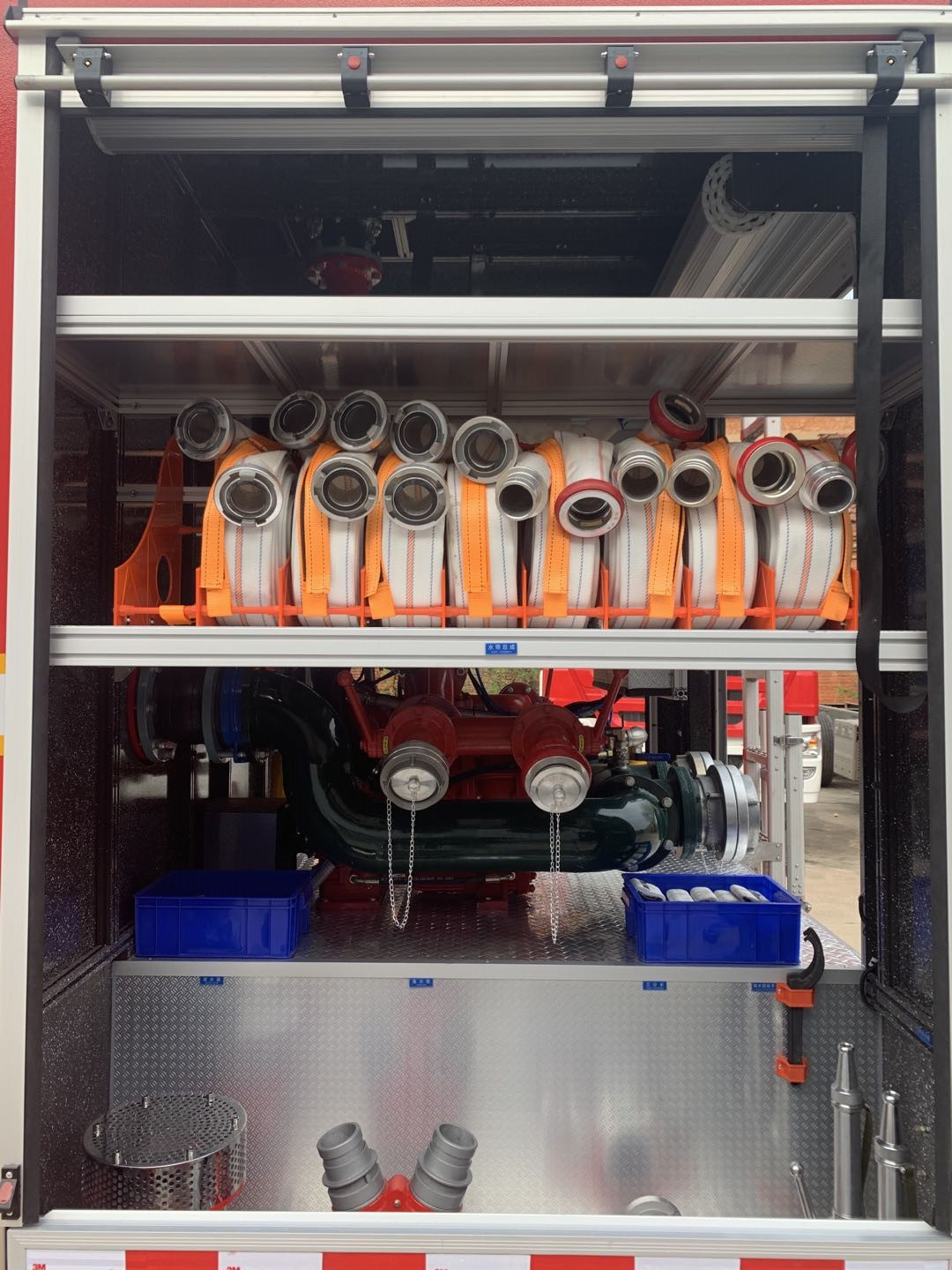

-The shelf board of the equipment box adopts special high-strength aluminum alloy profiles.
-Various types of equipment box structures such as pull-out panels, trays, and flip doors for easy access to equipment
-Reserve a ladder position on the roof.

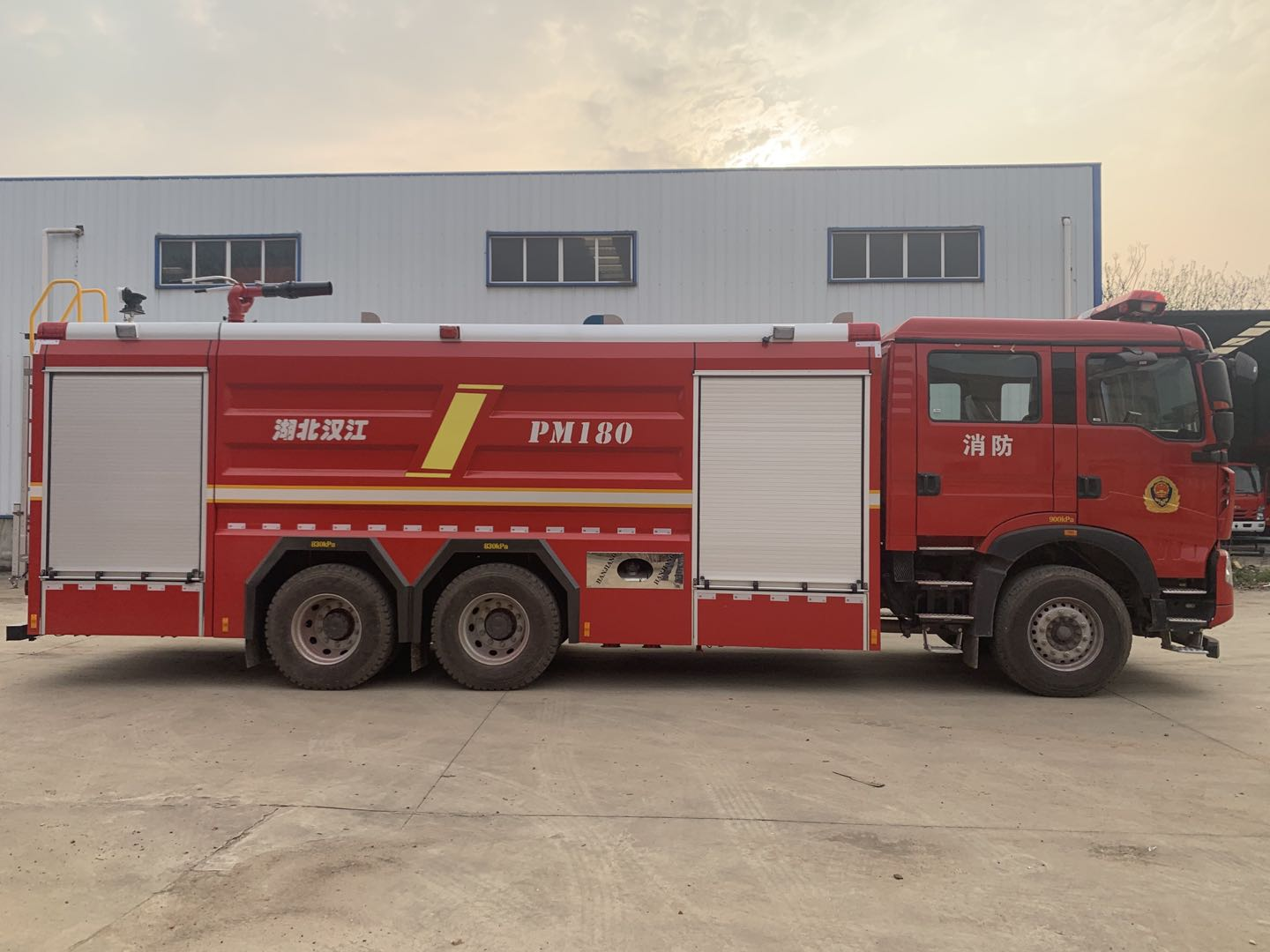

Vehicle parameters:
Total full load weight: 33950kg
Seats: 2+4
Maximum speed: 95 km/h
Wheelbase: 4600+1400mm
Allowable load of front axle/rear axle: 35000kg (9000kg+13000kg+13000kg)
Liquid capacity: 14000kg water + 4000kg foam
Dimensions (length x width x height): 10200mm x 2540mm x 3650mm
Gearbox: Sinotruk HW25712XSTL manual gearbox, 12 forward gears + 2 reverse gears.
Engine:
Model: MC11.44-60 in-line 6-cylinder high-pressure common rail diesel engine (Germany MAN technology)
Power: 327kW (1900r/min)
Torque: 2100N•m (1100~1400r/min)
Emission standard: Euro VI
fire monitor
Model: PL46 water and foam dual-purpose monitor
Pressure: ≤0.7Mpa
Flow: 2880L/min
Range: water ≥ 65m, foam ≥ 55m
Fire monitor type: Manually control the fire monitor, which can realize horizontal rotation and pitching
Installation location: top of the pump room
Fire Pump
Model: CB10/80 fire pump
Pressure: 1.3MPa
Flow: 3600L/min@1.0Mpa
Water diversion method: pump integrated with double piston diverter
Foam proportioner:
Type: negative pressure ring pump
Ratio mixing range: 3-6%
Control mode: manual
Model | HOWO-18T(Foam Fire Truck) |
Chassis Power(KW) | 327kw |
Emission Standard | Euro6 |
Wheelbase(mm) | 4600+1400mm |
Water tank capacity | 14000kg |
Foam tank capacity | 4000kg |
Fire pump | 3600L/min@1.0Mpa |
Fire monitor | 2880L/min |
Water range(m) | ≥ 65m |
Foam range(m) | ≥55m |
