1. Chassis
Model: Sinotruk ZZ5357TXFV464MF 16×4
Engine type: MC11.46-61 (in-line 6-cylinder high-pressure common rail diesel engine)
Emission standard: Euro 6
Power: 327kw
Wheel base:4600+1400mm
Max speed:≥100km/h
Gearbox: Sinotruk manual gearbox, 10 forward gears + 2 reverse gears
Front axle/rear axle allowable load: 35000kg (9000+13000+13000kg)
Electrical system: Generator: 28V/2200W Battery: 2×12V/180Ah
Fuel system: 300 liter fuel tank
Braking system: ABS anti-lock braking system
Service brake type: double-circuit air brake
Parking brake type: spring energy storage air brake
Auxiliary brake type: engine exhaust brake
Tires: Front Wheel Specifications: 385/65R22.5 20PR 2pcs
Rear wheel specifications: 12.00R20 18PR 8pcs
Spare tire specification: 385/65R22.5 20PR 1pc
2. Cab
Cab: Original single-row cab, with sleeping berth in the rear.It is independently produced by the chassis manufacturer and adopts the German MAN chassis cab technology, which makes it comfortable to drive.
Structure: Single-row, 2-door standard cab, with good airtightness, beautiful appearance, flat, with central control lock, electric lift, turning power system, using hydraulic cylinder support structure, the turning support structure is reliable.
It is equipped with a power take-off switch, a 100W alarm and a warning light switch, etc., and reserved installation holes for the warning light and wiring harness connectors.
Cab equipment:
Equipped with independent ventilation and heating and air conditioning, indoor LED lighting;
Equipped with two sets of 12 V, two sets of 24 V, one set of 220 V power supply ports, and equipped with 2 USB ports.
Seat Setup:The driver’s air suspension seat has 3 passengers. The height, angle, and front and rear position of the driver’s seat are adjustable. The main and passenger seats are equipped with original headrests and seat belts. The comfort of the passenger seat meets the requirements for long-distance riding.
There is a storage box in the middle of the cab, which can store small equipment such as handheld radios.
High-strength punched skid plates are used for getting on and off the pedals, and LED step lights are set at the same time to remind you to get on and off at night.
The door opening angle is about 90°, and there is a non-slip safety handrail on the door.
The cab is equipped with electric heated rearview mirrors on both sides, wide-angle heated rearview mirrors on both sides, and the front passenger’s side door is equipped with a blind spot mirror and a blind spot mirror in front of the cab.
3. Power Generation Lighting System
1). Imported generator:
Brand: Japan Honda
Model: SH11500
Rated power: 10KVA
Rated frequency: 50HZ
Rated voltage: 220V/380V
Voltage stabilizer: can withstand 30% unbalanced load.
Control cabinet: IP44 protection grade
Safety protection: when the load is too large, it can automatically power off and play a protective role
2). Lights:
Power: 4×500W
Type: LED lights
Lifting height: 7.6m
Rotation angle: ±360°
Depression/Elevation angle: Depression≥ 120°, Elevation≥ 120°
Voltage: 220V
Location: top of the car
4. Electric stacker

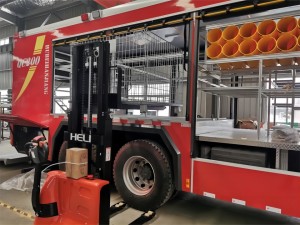

An electric stacker is fixed at the rear of the carriage, with a load of 1200kg and a maximum lift height of 2.8m. It can be disembarked through the hydraulic tailgate, and can be charged with the charging equipment built into the body. In large rescue sites, it can assist in the handling, loading and unloading of materials and equipment from other vehicles.The stacker truck itself is equipped with a lighting system, and a red warning light is installed on the upper part.
Rated load capacity: ≥1200kg
Lifting height: ≥1800mm
Weight: ≤800kg
Maximum gradeability: full load/no load: 6%/12%
5. Hydraulic lift tail board
In order to facilitate differentl kinds of equipment to get on and off freely, a self-loading and unloading lift tail gate is equipped at the rear of the vehicle, hydraulic control, through which the electric stacker and related equipment can be quickly picked and placed to improve the equipment loading and unloading efficiency.
Brand: Cadro
Rated load capacity: 1500kg
Control method: electro-hydraulic
Material: aluminum alloy sheet
Dimension: width 2400mm, height 2000mm
6. Equipment Compartment
Material: Special steel for automobiles, aviation aluminum alloy profiles, aluminum plates
Structure: The outer frame of the carriage adopts the welding structure of special steel for automobiles, the inner frame is a high-strength aluminum alloy lap joint profile, and the bottom plate is an aluminum alloy plate with anodized surface.
Equipment compartment door: Lightweight high-quality electrophoretic aluminum alloy, with aluminum alloy large rolling shutter door (with pull-rod door handle), flexible opening and closing, good sealing, low noise, beautiful appearance, light and reliable, all rolling shutter doors can be opened with one key .
The carriage is equipped with a climbing ladder leading to the roof, the top of the carriage is treated with anti-skid treatment, and the accumulated water flows down naturally;
The equipment can be used in environment of -30℃~+45℃, and can be used in plateau.
7. Electrical System
The top of the cab is equipped with a long row of LED warning lights
There are LED strobe lights on both sides of the vehicle, two on the left and right, and safety sign lights on the bottom
There are lights on both sides of the vehicle
Siren power 100W
The electrical control system is equipped with a safety grounding device
