Howo self-loading equipment fire truck

The emergency rescue module arm pulling vehicle is composed of chassis, arm pulling hook system and module equipment box.It is highly integrated and self-contained, and can independently respond to large-scale emergency rescues at any time, such as earthquakes, building collapses, complex traffic accidents, etc., as well as the ability of various conventional rescues to be mainly used for loading, unloading, and transportation of emergency rescue and rescue modules.

The box is equipped with toolboxes and trolleys of different specifications, which are loaded with all the emergency rescue and rescue module equipment purchased this time. The planning is unified, which saves space, saves handling manpower, is easy to manage, and improves efficiency. The box body is matched with the emergency rescue and rescue module trolley, perfect integration and high maneuverability.

1. Module equipment box:

overall layout: chassis The girder is equipped with full hydraulic arm hook equipment, the overall frame type self-loading and unloading box body, the full rolling shutter door structure on both sides, the lower part is the patterned aluminum plate foot pedal, and the built-in lighting facilities(continuous lighting time ≥ 6 hours).

Structure:The main frame of the box is welded with high-strength steel, the bottom is an integral bracket assembly, the lower pedal surface is designed with aluminum alloy checkered plate anti-slip design, with double locking function (hinge and lock pin locking mechanism), the upper part is integrally welded The interior is divided into several compartments according to the function of the equipment, and the skeleton of the compartments is made of high-quality steel pipes. The outer skin is welded with steel plates, the inner skeleton is made of high-strength aluminum alloy profiles, connected by built-in bolts, the size can be adjusted, and the bottom plate is made of aluminum alloy plates. The equipment box is compactly arranged, firmly clamped, and easy to use. Use special fixtures that are rust-proof, shock-proof, fall-proof, and scratch-proof to fix the on-board equipment (fixed before delivery).

Material:The frame of the equipment box is made of high-quality steel, and the skin and main frame are painted with high technology to enhance the anti-corrosion ability. The welding part is firm, clean and flat; all the gaps are filled with silicone and sealed well. All plates, skeletons, parts, and structural parts have undergone strict anti-rust treatment, and aluminum profiles, aluminum plates, and checkered plates have been oxidized.

Inside the equipment box,various special trailers, rotating racks, demolition tool trailers, drawers, carts, adjustable equipment boxes and other mechanisms are used to place and fix various equipment and equipment, and will not move during loading, unloading and transportation. After the equipment box is modified, it will not affect the normal maintenance of the chassis components such as refueling, cleaning the fuel tank pipeline filter, replacing the battery, fuel filter element, drying tank, air filter element, and diesel filter element.

Box door: 1.The equipment box door adopts a lightweight high-quality aluminum alloy rolling door structure, which is flexible in opening and closing, good in sealing, low in noise, and beautiful in appearance. There are LED lights on the outside on both sides of the inner wall of each warehouse that automatically switch with the opening and closing of the rolling shutter door. Belt, no lighting blind area, the brightness is greater than 10Lux. The roller shutter door is locked by the lever, and the locks are installed on both sides. The handle and the lock pin are durable and not easy to deform. The slideways on both sides of the roller shutter door are formed at one time, and cutting and welding are prohibited. Stop at any position, and you can use a key to open it (there is enough space for safe operation below the opening and closing handle of the rolling shutter door).

2. Equipment storage method: support rods and extension rods are stored in PVC cylinders, and the rest of the equipment is mostly stored in metal shelves. Each shelf is fixed to the frame with internal hexagon screws, so that the position can be adjusted up and down.

3. The box is equipped with 2 small carts, each with a load of ≥ 380 kg, with parking brake function.

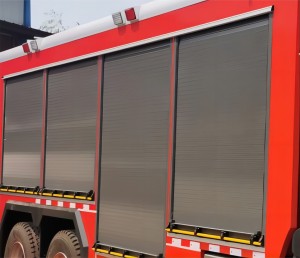

4. There are three rolling shutter doors on the left and right sides of the box, with rain strips above, and limit switches are set in each door. Opening the rolling shutter doors will trigger internal lighting.

5. At the rear end of the box, the flip door should be able to open upwards, and the door width should be ≥ 2.2 meters; there is a limit switch, and opening the cover door will trigger internal lighting; both corners of the flip door are equipped with corner warning lights.

 (The picture is for reference only)

6. The power distribution box is located at the front of the box, and a rechargeable battery with insurance is installed in the power distribution box; when the voltage is insufficient, two alarm signals, buzzer and light, can be issued, and the peripheral lighting button , respectively control the internal and external lighting; outside the box, there are at least eight groups of LED lighting, the protection level is IP66.

2. Main parameters of the vehicle:

1. Dimensions: 9600×2510×3850

2. Chassis:Sinotruk ZZ5357TXFV464MF1 6×4

3. Engine: MC11.44-60

4. Maximum power: 341 kW

5. Wheelbase: 4600 +1400mm

6. Emission standard: National VI

7. Maximum speed: 95km/s Set the speed limit device as required, the maximum speed does not exceed 95Km/h, and the limited speed does not exceed the maximum speed allowed by the chassis factory; install exhaust brake , Engine in-cylinder braking technology and equipped with hydraulic retarder.

8. Tire: The tire adopts radial steel wire tire and tire pressure monitoring system, and a spare tire of the same brand and model as the original front tire, equipped with special snow chains, and equipped with a tire pressure regulating system.

9. Pull arm system: (Hyward 14-53-S) maximum

3、Parameters

Chassis performance requirements:

Product advancement:

The chassis is equipped with front wheel disc brakes, ABS (anti-lock braking system) and EBS (electrically controlled braking system), etc.; it is equipped with ESP electronic body stability system, and a speed limit device is set. The maximum speed does not exceed 95Km/ h, to ensure that the limited speed does not exceed the maximum speed allowed by the chassis factory; install exhaust brake, in-cylinder braking technology and equipped with hydraulic retarder. The rear seat is equipped with seat belts, equipped with 350MHz digital-analog dual-purpose vehicle radio (in line with PDT technical standards, compatible with 370MHz emergency special frequency band), 360° no blind spot HD driving recorder, reversing radar and high-definition reversing image (color display ≥ 7 inch), the recorder has a hard disk storage of up to 500G; the driving recorder adopts automatic segment recording, and the earliest record can be deleted by itself after the record card is full; reserve 12V vehicle radio connection cable, 220V charging cable, and configure 24V to 12V and 24V Convert to 220V inverter to facilitate the installation of equipment later; the tire adopts radial wire tire and tire pressure monitoring system, and has a spare tire of the same brand and model as the original front tire, equipped with special snow chains, and equipped with tire pressure regulating system.

4. Top loading:

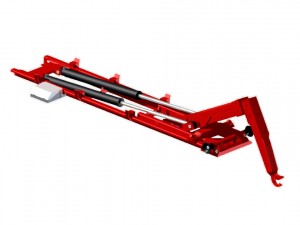

1. Pull arm hook system

1.1, Model: 14-53-S

1.2, Manufacturer: Hyward

1.2, Drive mode: Hydraulic

1.2, working pressure ≥30MPa.

1.3. Self-loading and unloading loading and unloading capacity of the pull arm: ≥14T

1.4. When the angle between the central axis and the container axis is ≥10°, it can be lifted normally.

1.5. The unloading time of the box: 60s Loading working time: ≤60s

1.6. Operation in the cab, driving There is a backup control system outside.

1.7. After 100 times of loading and unloading performance tests, the loading and unloading mechanism of the fire truck has reliable performance, and there is no abnormality in the pull arm hook.

Product durability:

configuration features
S500MC/S600MC steel is used for structural parts.
Hydraulic components, electrical components, anti-rust coating, etc. are all imported brands, which are more stable and reliable.
Technical Features
Lightweight design, high structural strength, more cargo can be loaded.
The key force-bearing parts are made of cast steel, which is stronger than other products.
Control method
Cab operating unit.

2、of emergency rescue module shelter

Practicality

1.Overall layout: the chassis girder is equipped with full hydraulic pull arm hook equipment, the overall frame type self-loading and unloading box body, the full rolling shutter structure on both sides, the lower part is a patterned aluminum plate foot pedal, with built-in lighting Facilities (continuous lighting time ≥ 6 hours).

2. Various special trailers, rotating racks, demolition tool trailers, drawers, carts, adjustable equipment boxes and other mechanisms and various equipment and equipment fixtures are installed inside the equipment box, which will not move during loading, unloading and transportation.After winning the bid, our company will strengthen communication with the buyer to ensure that all kinds of equipment are placed reasonably and the space utilization rate is ≥90%.

3.Requirements: 2 modular equipment boxes, which are the water rescue module and the boat transportation module (the boat module can accommodate the volume of 4 rubber boats and 2 assault boats); the volume of the remaining modules can reasonably accommodate equipment. No equipment required.

4. The equipment module is equipped with an independent power supply, and the module has an independent battery and a mains interface. It can be automatically charged when the vehicle is running/starting, and the lighting system in the module can be used for ≥6 hours.

5、Surface treatment

finish: domestic high-quality fire-fighting red paint.

Color: The cab and body are fire-fighting red, the chassis frame is black, the rims are silver, and the fenders and bumpers are gray.

Stick 3M reflective stickers on the rear and sides of the car.

6、Electrical system (product safety)

requirements: the electrical system lines are clearly marked, each wire has a separate number, the vehicle electrical system lines use copper core or copper alloy core wires, the colors of the positive and negative electrode lines are clearly distinguished, and the modified lines and connectors use Waterproof and dustproof material, all lines are neatly bundled, and the line laying position is convenient for inspection and maintenance. If the modified circuit is exposed outside the car body, close to the heat source, or close to the fuel tank, etc., a partition or corresponding protection should be installed. Install main exterior mirrors, wide-angle exterior mirrors, front-view mirrors, blind-filling exterior mirrors, external lighting, signaling devices, reflective warning signs, front and rear bumpers, side protection and other safety protection performance, as well as various alarm devices.

1. In addition to the original car equipment, alarms, warning lights, marker lights, position lights and other control switches are located in the cab, independent circuit design, electrical equipment are all DC24V, and the control devices are installed in the cab.

2. A long row of LED warning lights (length ≥ 1.5 meters), siren and amplifying system (power ≥ 100 watts) are installed outside the cab. It is an independent additional circuit, and the cab is centrally controlled.

3. Install 45° side lights (power: 24V 60W) and red and blue strobe lights (spacing ≤3m) on both sides of the vehicle body, and install safety sign lights below.

4. Lighting: The equipment box is equipped with automatic induction lighting and LED lighting strips, and is equipped with stable power supply facilities to ensure that the operator can easily pick up and place the equipment.

5. The independent circuit design of the whole vehicle, and a permanent nameplate with product information such as the manufacturer’s name, brand name, model, engine number, specification, production date, and ex-factory date is set up in a prominent position. Various operating switches, valves, fuse boxes, on-board equipment, etc. are set up with permanent signs. Protective covers are provided for exposed drive shafts, belts, equipment, etc. Set up a special fuse box for bodywork (permanent labels are set to mark various insurance purposes), all lines are made of national standard copper core wires, protected by sleeves, and different colors and wire numbers are used to distinguish the line connection form and function, and the nominal current of the wire It is 125% larger than the actual energizing current of the wire, and is connected with waterproof terminals. The circuit lamps are protected by the relay current/voltage overload. The lines of the additional electrical boxes in the rear equipment box are protected by wire troughs and equipped with shock-proof facilities to ensure the safety of the body.

7. Technical requirements (product durability)

1. All operation switches, meters, equipment racks and vehicles are marked with Chinese waterproof signs that meet the specifications; according to the actual needs of the province’s fire and rescue equipment construction, the cab is permanently pasted in prominent positionsGB7956.1

“General Technical Conditions for Fire Trucks”.

3. The overall dimensions, axle loads and quality of the vehicle conform to the provisions of GB1589-2016 “Road Vehicles Outline Dimensions, Axle Loads and Quality Limits”.

4. The exterior lighting and signalling devices of the whole vehicle comply with the provisions of GB4785 “Installation Regulations for External Lighting and Light Signaling Devices of Automobiles and Trailers”. (Emergency Reduction [2019] No. 76) requires painting.

5. Vehicle markings comply with GB7258 “Technical Conditions for Motor Vehicle Safety”.

6. The rear and lower protection requirements of the vehicle comply with GB11567.1 “Installation Regulations for Exterior Lighting and Signaling Devices of Automobiles and Trailers”.

7. In addition to the basic requirements, the equipment box should be negotiated and set according to the actual needs of users.After the equipment box is modified, it shall not affect the normal maintenance of chassis components such as refueling, cleaning of fuel tank pipeline filters, replacement of batteries, fuel filter elements, drying tanks, air filter elements, and diesel filter elements.

8.Provide detailed circuit diagrams, water circuit diagrams, hydraulic pipeline diagrams and insurance distribution diagrams at the time of delivery.

9. All welding parts of the whole vehicle are firm, smooth and flat; all gaps are filled with silicone and sealed well. All plates, skeletons, parts, and structural parts have undergone strict anti-rust treatment, and aluminum profiles, aluminum plates, and checkered plates have been oxidized. The equipment box is compactly arranged, firmly clamped, and easy to use. Use special fixtures that are rust-proof, shock-proof, fall-proof, and scratch-proof to fix the on-board equipment (fixed before delivery). The electrical system lines are clearly marked, and each wire has a separate number. The electrical system lines of the vehicle are made of copper core or copper alloy core wires. The colors of the positive and negative electrode lines are clearly distinguished. The modified lines and connectors are made of waterproof and dustproof materials, and each line is bundled. Neat, the line laying position is convenient for inspection and maintenance. If the modified circuit is exposed outside the car body, close to the heat source, close to the fuel tank, etc., install a partition or corresponding protection.
